Debugger/programator z interfejsem JTAG oraz SWD dla mikrokontrolerów ARM zgodny z KEIL ULINK 2

zgodny z KEIL ULINK 2

ULINK2 emulator can upgrade original firmware support mdk4.14 upgrade

1) The function is fully compatible with the latest version of MDK software can seamlessly use;

 2) Support firmware upgrade firmware automatically;

 3) after long-term validation to use, stable performance without any exception;

 4) Quality is guaranteed, the best price.

 The only learning to use the emulator ULINK2

ULINK2 New Features

•
•  Standard Windows USB plug and play driver support ULINK2
•  Support for ARM Cortex-M3-based serial debug
•  Support the program is running, the memory read and write, terminal emulation and serial debug output
•  Supports 10-pin cable (also supports 20-pin connector)

ULINK2 main functions:

•  High-speed USB communication interface to download user code
•  Storage Area / register View
•  Rapid single-step run
•  A variety of program breakpoints
•  On-chip Flash programming

ULINK2 Specifications:

• RAM Breakpoints Unlimited
• ROM Breakpoints(ARM7/9) 2 max
• ROM Breakpoints(Cortex-M3) 6 max
• Execution Breakpoints (Set While Executing) V
• Access Breakpoints(ARM7/9) 2 max (R/W Only,With Value)
• Access Breakpoints(Cortex-M3) 4 max (With Value)
• Trace History X
• Real-Time Agent V
• JTAG clock <= 10MHz
• JTAG RTCK Support (Return Clock) V
• Memory R/W(Bytes/sec) ≈ 28K
• Flash R/W(Bytes/sec) ≈ 25K
• Single-Step(Fast)(Instructions/sec) ≈ 50

Supported Devices:

Actel (ARM7/ARM9/Cortex Family)
COREMP7, Cortex-M1

Analog Devices (ARM7/ARM9/Cortex Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7028, ADuC7030, ADuC7032, ADuC7033, ADuC7034, ADuC7036, ADuC7037, ADuC7038, ADuC7039, ADuC7060, ADuC7061, ADuC7062, ADuC7128, ADuC7129, ADuC7229

ARM (ARM7/ARM9/Cortex Family)
Cortex-M0, Cortex-M1 (Altera), Cortex-M3

Atmel (ARM7/ARM9/Cortex Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM3U1C, AT91SAM3U1E, AT91SAM3U2C, AT91SAM3U2E, AT91SAM3U4C, AT91SAM3U4E, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7L128, AT91SAM7L64, AT91SAM7S128, AT91SAM7S16, AT91SAM7S161, AT91SAM7S256, AT91SAM7S32,

AustriaMicroSystems (ARM7/ARM9/Cortex Family)
AS3525

Cirrus Logic (ARM7/ARM9/Cortex Family)
CS740110-IQZ, CS740120-IQZ, CS740130-IQZ

Energy Micro (ARM7/ARM9/Cortex Family)
EFM32G200F16, EFM32G200F32, EFM32G200F64, EFM32G210F128, EFM32G230F128, EFM32G230F32, EFM32G230F64, EFM32G280F128, EFM32G280F32, EFM32G280F64, EFM32G290F128, EFM32G290F32, EFM32G290F64, EFM32G840F128, EFM32G840F32, EFM32G840F64, EFM32G880F128, EFM32G880F32, EFM32G880F64, EFM32G890F128, EFM32G890F32, EFM32G890F64

Freescale Semiconductor (ARM7/ARM9/Cortex Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144, MC9328MX21, MCIMX27, MCIMX27L

Luminary Micro (ARM7/ARM9/Cortex Family)
LM3S101, LM3S102, LM3S1110, LM3S1133, LM3S1138, LM3S1150, LM3S1162, LM3S1165, LM3S1332, LM3S1435, LM3S1439, LM3S1512, LM3S1538, LM3S1601, LM3S1607, LM3S1608, LM3S1620, LM3S1625, LM3S1626, LM3S1627, LM3S1635, LM3S1637, LM3S1751, LM3S1776,

Nuvoton (ARM7/ARM9/Cortex Family)
W90N740, W90N745, W90P710


NXP (founded by Philips) (ARM7/ARM9/Cortex Family)
LH75400, LH75401, LH75410, LH75411, LH79520, LH79524, LH79525, LH7A400, LH7A404, LPC1311, LPC1313, LPC1342, LPC1343, LPC1751, LPC1752, LPC1754, LPC1756, LPC1758, LPC1764, LPC1765, LPC1766, LPC1767, LPC1768, LPC2101, LPC2102, LPC2103, LPC2104, LPC2104/01, LPC2105, LPC2105/01, LPC2106, , LPC2109, , LPC2114, LPC2114/01, LPC2119, LPC2119/01, LPC2124, LPC2124/01, LPC2129, LPC2129/01, LPC2131,, LPC2132, LPC2132/01, LPC2134, LPC2134/01, LPC2136, LPC2136/01, LPC2138, LPC2138/01, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2194/01, LPC2210, LPC2210/01, LPC2212, LPC2212/01, LPC2214,LPC2220, LPC2290, LPC2290/01, LPC2292, LPC2292/01, LPC2294, LPC2294/01, LPC2364, LPC2365, LPC2366, LPC2367, LPC2368, LPC2377, LPC2378, LPC2387, LPC2388, LPC2420, LPC2458, LPC2460, LPC2468, LPC2470, LPC2478, LPC2880, LPC2888, LPC2917, LPC2917/01, LPC2919, LPC2919/01, LPC2921, LPC2923, LPC2925, LPC2927, LPC2929, LPC2930, LPC2939, LPC3130, LPC3131, LPC3141, LPC3143, LPC3152, LPC3154, LPC3180, LPC3220, LPC3230, LPC3240, LPC3250, SJA2010

OKI (ARM7/ARM9/Cortex Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML675011, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML67Q5250, ML696201, ML69Q6203

Samsung (ARM7/ARM9/Cortex Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3F4A0KR, S3F4A1HR, S3F4A2FR

Socle Technology Corp. (ARM7/ARM9/Cortex Family)
PC7130, PC7230

STMicroelectronics (ARM7/ARM9/Cortex Family)
STA2051,STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB, STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101T4, STM32F101T6, STM32F101T8, STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101ZC, STM32F101ZD, STM32F101ZE, STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB, STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB, STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB, STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103T4, STM32F103T6, STM32F103T8, STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC, STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC, STR710FZ1, STR710FZ2,

Texas Instruments (ARM7/ARM9/Cortex Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768

Toshiba (ARM7/ARM9/Cortex Family)
TMPA900CMXBG, TMPA910CRAXBG, TMPM330FDFG, TMPM330FWFG, TMPM330FYFG

Zilog (ARM7/ARM9/Cortex Family)
ZA9L

Zestaw zawiera:

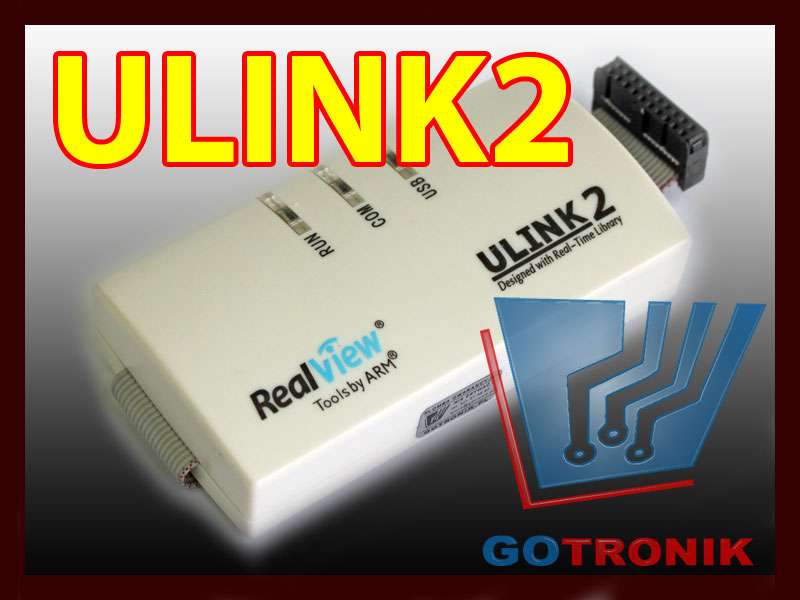

• 1x Ulink2 USB JTAG Adapter
• 1x CD rom
• 1x JTAG cable 20 Pin
• 1x Cable USB
